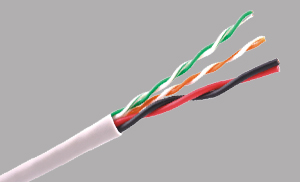

Instruction:
Cat5e cable meet to 100MHZ data communication,color code marked according to ANSI/TIA/EIA 568-B.

Apply to: 155 Mbps ATM, 100Mbps Ethernet(100BASE-T) and other systems with 622 Mbps transmission speed apply to 10 Mbps Ethernet, 4Mbps & 16Mbps.


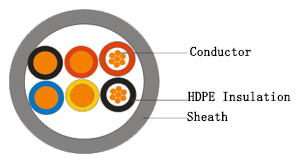

Data Specifications:
Inner Conductor :                               Solid/Strand bare copper

Insulation Dia. :                                  0.91±0.05mm

Jacket :                                              PVC

Nominal O.D :                                   6.5*11mm²

Power cable conductor Dia. :              0.5/0.75mm²

Pairs color code :

Pair 1 :                                              Green-white/orange

Pair 2 :                                              Orange-white/orange

power cable :                                     Red/Black

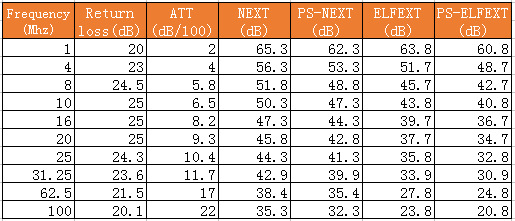

Electrical Specifications:

Dielectric strength:2.5kv dc-2 seconds
Conductor resistance:Max.9.380hm/100mt at 20ºC
Max ring resistance:16.80hm/100mt at 20ºC
Max mutual capacitance:560pf/100m
Max capacity unbalance:330pf/100m
Impedance:100±15%Ω at 1~100MHz


Electrical Specifications:
