Multi-Conductor Copper Speaker Cable

Product Description:

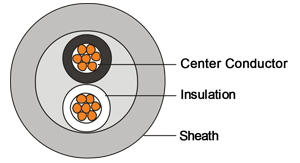

Conductor: 2*12AWG/14AWG/16AWG/18AWG stranded TC
Polyethylene insulation: black/white
Pairs:1 pair twisted
Shield: 100% overall aluminum foil-polyester tape screen
PVC Jacket: grey

Application:
Used for speaker equipment
Cable wiring for audio products installation

Physical Characteristics (Overall)

Pair1
Conductor TypeStranded
Conductor Size18AWG/16AWG/14AWG/12AWG
Overall Nominal Diameter5.9MM/7.0MM/8.6MM/5.9MM
Packing100M, 250M, 305M, 500M

Electric Characteristics (Overall) 2*16AWG

Nominal Inductance0.184 μH/ft
Nominal Capacitance Conductor to Conductor at 1 KHz33 pF/ft
Nominal Capacitance Conductor to Other Conductor & Shield at 1 KHz4.49 pF/ft
Max. Operating Voltage - UL 30 V RMS (UL AWM Style 2919)300 V RMS
Max. Recommended Current7.1 Amps per conductor at 25℃

Electric Characteristics (Overall) 2*14AWG

Nominal Inductance0.19 μH/ft
Nominal Capacitance Conductor to Conductor at 1 KHz33 pF/ft
Nominal Capacitance Conductor to Other Conductor & Shield at KHz2.86 pF/ft
Max. Operating Voltage - (UL AWM Style 2587)/CL3600 V RMS/300 V RMS
Max. Recommended Current9.6 Amps per Conductor at 25 ℃
