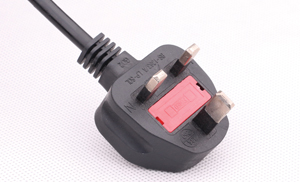

1- U.K. Standard Power Cable

U.K.Standard
Application: Home appliance ,TV, Set-top box,DV,Laptop.

Electrical Specification

Type	Number of cores section( mm²)
H03VVH2-F	2*0.5-0.75mm²
H03VV-F	2*0.5-0.75mm^²
H03VV-F	3*0.5~0.75mm^²
H05VVH2-F	2*0.75~1.0mm^²
H05VV-F	2*0.75~1.5mm^²
H05VV-F	3*0.75~1.5mm^²
H03RT-F	2*0.75~1.5mm^²
H03RT-F	2*0.75~1.5mm^²
H05RN-F	2*0.75~1.0mm^²
H05RN-F	3*0.75~1.0mm^²
H07RN-F	2*1.0~1.5mm^²
H07RN-F	3*1.0~1.5mm^²
A05VV-F	2*1.25mm^²
A05VV-F	3*1.25mm^²

Used Speciality
Type	Number of cores(mm^²)	Conductors Construction	Insuation Thickness (mm)		Sheath Thickness (mm)		Overall Diamete (mm)
Type	Number of cores(mm^²)	Conductors Construction	Nomal	Min	Nomal	Min	Max	Min
H03VVH2-F H03VV-F	2*0.5	16*0.20	0.5	0.35	0.6	0.41	4.6/3.0*4.9	5.9/3.7*5.9
	2*0.75	24*0.20	0.5	0.35	0.6	0.41	4.9/3.2*5.2	6.3/3.8*6.3
	3*0.5	16*0.20	0.5	0.35	0.6	0.41	4.9	6.3
	3*0.75	24*0.20	0.5	0.35	0.6	0.41	5.2	6.7
H05VVH2-F H05VV-F	2*0.75	24*0.20	0.6	0.44	0.8	0.58	5.7/3.7*6.0	7.2/4.5*7.2
	2*1.0	32*0.20	0.6	0.44	0.8	0.58	5.9/3.9*6.2	7.5/4.7*7.5
	2*1.5	28*0.254	0.7	0.53	0.8	0.58	6.8	8.6
	2*2.5	48*0.254	0.8	0.62	1.0	0.75	8.4	10.0
