Display Cable

Display Cable

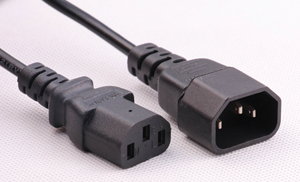

Application: Home appliance ,TV, Set-top box,DV,Laptop.

Available Cords

Type	Cord Size	Available Voltage
SPT-1	18AWG*3C	10A 125V
SPT-2	18AWG*3C	10A 125V
SVT	18AWG*3C	10A 125V
SJT	18AWG*3C	10A 125V
SPT-2	16AWG*3C	13A 125V
SVT	16AWG*3C	13A 125V
SJT	16AWG*3C	13A 125V

Electrical Specification
Wire Type	No:of cord	Cord size	Stranding No/(mm)	Insulation Thickness	Jacket Thickness (mm)	Norminal O.D(mm)	Temp Rating	Jacket Material	Voltage Rating	Ampere Rating	Shielding
SPT-1	2	18AWG	41*0.16	0.76	-	2.7*5.4	60℃-105℃	PVC	300V	10A	None
SPT-1	3	18AWG	41*0.16	0.76	-	2.7*8.3	60℃-105℃	PVC	300V	10A	None
SPT-2	2	18AWG	41*0.16	1.14	-	3.5*7.0	60℃-105℃	PVC	300V	10A	None
	2	16AWG	65*0.16	1.14	-	3.8*7.6	60℃-105℃	PVC	300V	13A	None
	3	18AWG	41*0.16	1.14	-	3.5*9.0	60℃-105℃	PVC	300V	10A	None
	3	16AWG	65*0.16	1.14	-	3.8*10.0	60℃-105℃	PVC	300V	13A	None
SVT	2	18AWG	41*0.16	0.38	0.76	6.0	60℃-105℃	PVC	300V	10A	None
SVT	3	18AWG	41*0.16	0.38	0.76	6.3	60℃-105℃	PVC	300V	10A	None
SJT	2	18AWG	41*0.16	0.76	0.76	7.5	60℃-105℃	PVC	300V	10A	None
	2	16AWG	65*0.16	0.76	0.76	8.1	60℃-105℃	PVC	300V	13A	None
	2	14AWG	41*0.254	0.76	0.76	9.0	60℃-105℃	PVC	300V	15A	None
	2	12AWG	65*0.254	0.76	1.14	10.4	60℃-105℃	PVC	300V	15A	None
	3	18AWG	41*0.16	0.76	0.76	7.8	60℃-105℃	PVC	300V	10A	None
	3	16AWG	65*0.16	0.76	0.76	8.5	60℃-105℃	PVC	300V	13A	None
	3	14AWG	41*0.254	0.76	0.76	9.5	60℃-105℃	PVC	300V	15A	None
	3	12AWG	65*0.254	0.76	1.14	10.5	60℃-105℃	PVC	300V	15A	None
