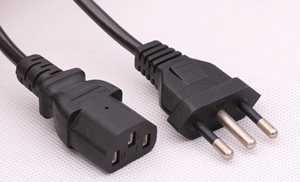

Italy Standard
Application:Home appliance ,TV,Set-top box,DVD,Laptop.

Electrical Specification

Avlailable Cords	Available valtage
H03VV-F 3G0.75mm²	10A 250V
H05VV-F 3G0.75mm²	10A 250V
H05VV-F 3G1.0mm²	10A 250V
H05VV-F 3G1.5mm²	10A 250V
H05RR-F 3G0.75mm²	10A 250V
H05RR-F 3G1.0mm²	10A 250V
H05RR-F 3G1.5mm²	10A 250V
H05RN-F3G 0.75mm²	10A 250V
H05RN-F3G1.0mm²	10A 250V
H03RT-H3G 0.75mm²	10A 250V
H03RT-H3G 1.0mm²	10A 250V
H03RT-H3G 1.5mm2	10A 250V

Wire Type	No:of cord	Cord size	Stranding No/(mm)	Insulation Thickness	Jacket Thickness (mm²)	Norminal O.D(mm)	Temp Rating	Jacket Material	Voltage Rating	Ampere Rating	Shielding
H03VV-F	2	0.5mm²	28*0.15	0.5	0.6	5.6	70℃	PVC	300V/500V	2.5A	None
	2	0.75mm²	24*0.2	0.5	0.6	5.8	70℃	PVC	300V/500V	2.5A	None
	3	0.5mm²	28*0.16	0.5	0.6	5.8	70℃	PVC	300V/500V	2.5A	None
	3	0.75mm²	24*0.2	0.5	0.6	6.2	70℃	PVC	300V/500V	2.5A	None
H05VV-F	2	0.75mm²	24*0.2	0.6	0.8	6.5	70℃	PVC	300V/500V	6A	None
	2	1.0mm²	32*0.2	0.6	0.8	6.8	70℃	PVC	300V/500V	10A	None
	2	1.5mm²	30*0.254	0.7	0.8	8.0	70℃	PVC	300V/500V	16A	None
	2	2.5mm²	50*0.254	0.8	1.0	9.8	70℃	PVC	300V/500V	16A	None
	3	0.75mm²	24*0.2	0.6	0.8	6.8	70℃	PVC	300V/500V	6A	None
	3	1.0mm²	32*0.2	0.6	0.8	7.2	70℃	PVC	300V/500V	10A	None
	3	1.5mm²	30*0.254	0.7	0.9	8.5	70℃	PVC	300V/500V	16A	None
	3	2.5mm²	50*0.254	0.8	1.0	10.5	70℃	PVC	300V/500V	16A	None
H05VVH2-F	2	0.75mm²	24*0.2	0.6	0.8	4.0*6.7	70℃	PVC	300V/500V	6A	None
H05RR-F	2	0.75mm²	24*0.2	0.6	0.8	6.5	60℃	PVC	300V/500V	6A	None
	2	1.0mm²	32*0.2	0.6	0.9	6.9	60℃	PVC	300V/500V	10A	None
	2	1.5mm²	30*0.254	0.8	1.0	8.6	60℃	PVC	300V/500V	16A	None
	2	2.5mm²	50*0.254	0.9	1.1	11.2	60℃	PVC	300V/500V	16A	None
	3	0.75mm²	24*0.2	0.6	0.9	6.8	60℃	EPR	300V/500V	6A	None
	3	1.0mm²	32*0.2	0.6	0.9	7.3	60℃	EPR	300V/500V	10A	None
	3	1.5mm²	30*0.254	0.8	1.0	9.0	60℃	EPR	300V/500V	16A	None
	3	2.5mm²	50*0.254	0.9	1.1	11	60℃	EPR	300V/500V	16A	None
H05RN-F	2	0.75mm²	24*0.2	0.6	0.8	6.5	60℃	EPR	300V/500V	6A	None
	2	1.0mm²	32*0.2	0.6	0.9	6.9	60℃	EPR	300V/500V	10A	None
	3	0.75mm²	24*0.2	0.6	0.9	6.8	60℃	EPR	300V/500V	6A	None
	3	1.0mm²	32*0.2	0.6	0.9	7.3	60℃	EPR	300V/500V	10A	None
H03RT-H	2	0.75mm²	43*0.15	0.8	-	6.5	60℃	EPR	300V/500	6A	None
	2	1.0mm²	57*0.15	0.8	-	6.7	60℃	EPR	300V/500	10A	None
	2	1.5mm²	85*0.15	0.8	-	8.0	60℃	EPR	300V/500	16A	None
	3	0.75mm²	43*0.15	0.8	-	6.7	60℃	EPR	300V/500	6A	None
	3	1.0mm²	57*0.15	0.8		7.1	60℃	EPR	300V/500	10A	None
	3	1.5mm²	85*0.15	0.8		8.6	60℃	EPR	300V/300V	16A	None
